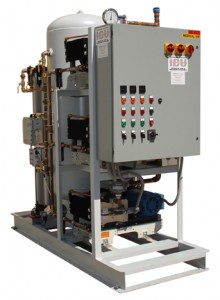

Triplex Stacked Scroll Med Air

Oil-Less Scroll

Oil-less scroll compressor technology is state-of-the-art and quickly encompassing the medical and healthcare markets. The attractive small footprint and ultra-quiet, efficient operation of these 100% dry compressors equates to longer pump life with easy, cost effective maintenance. The pumps are environmentally friendly since no hazardous waste oil disposal is necessary.

The high quality pumps we use are a V-belt design driven by TEFC motors. Each compressor is packaged with high temperature shutdown/alarms and air cooled aftercoolers with automatic separator drains. The units are air cooled, requiring no water for operation, saving substantial dollars per year in the cost of cooling water.

Our ICU Oil-less Scroll systems are constructed in modules for mobility, easy installation and service on your site. Each system comes equipped with an NFPA99 compliant drying, filtration and regulating system, dew point monitor, carbon monoxide monitor and any specialty items required for specific healthcare applications. We only use A.S.M.E. certified receivers – with interior coating and by-pass systems when required – and U.L. approved control panels. All ICU medical air systems are pre-plumbed and pre-wired for single point connections and meet or exceed NFPA99 codes and other required regulations.

Please contact our engineering department for more information.

Equipment Features:

  • TEFC motors are standard
  • 100% Duty Cycle
  • Environmentally friendly – 100% oil-less design
  • Air cooled design requires no water for operation

System Advantages:

  • Compact design for easy installation in small spaces
  • Multiple air-ends with energy saving control unit
  • Simple design equates to easy, low cost maintenance
  • Long maintenance intervals reduces overall operating costs

Duplex Oil-less Scroll Vertical Tank mount w/ Desiccant Dryers

* System capacities are shown with reserve compressor as redundant standby to comply with NFPA 99.


Duplex Oil-less Scroll Vertical Tank mount w/ Desiccant Dryers
1600 A72M-DTE-4VS-D 300x225
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*

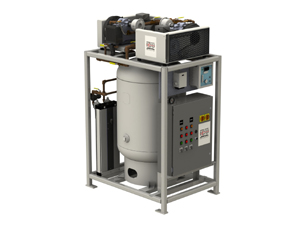

1600 Duplex Oil-less Scroll Vertical Tank mount w/ Desiccant Dryers 1600 A72M-DTE-4VS-D 300x225 2.0 6.60 6.60 80 A72M-DTC-3VE-D
2.0 6.60 6.60 120 A72M-DTC-4VE-D
3.0 9.70 9.70 80 A72M-DTD-3VE-D
3.0 9.70 9.70 120 A72M-DTD-4VE-D
5.0 14.80 14.80 80 A72M-DTE-3VE-D
5.0 14.80 14.80 120 A72M-DTE-4VE-D

Duplex Oil-less Scroll Horizontal Tank mount w/ Desiccant Dryers

* System capacities are shown with reserve compressor as redundant standby to comply with NFPA 99.


Duplex Oil-less Scroll Horizontal Tank mount w/Desiccant Dryers
1601 A72M-DTE-4HS-D 300x250
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*

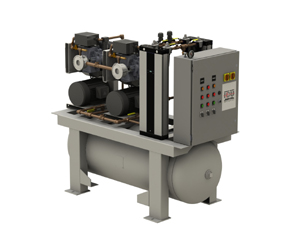

1601 Duplex Oil-less Scroll Horizontal Tank mount w/Desiccant Dryers 1601 A72M-DTE-4HS-D 300x250 2.0 6.60 6.60 80 A72M-DTC-3HE-D
2.0 6.60 6.60 120 A72M-DTC-4HE-D
3.0 9.70 9.70 80 A72M-DTD-3HE-D
3.0 9.70 9.70 120 A72M-DTD-4HE-D
5.0 14.80 14.80 80 A72M-DTE-3HE-D
5.0 14.80 14.80 120 A72M-DTE-4HE-D
5.0 14.80 14.80 200 A72M-DTE-5HE-D
5.0 14.80 14.80 240 A72M-DTE-6HE-D

Duplex Oil-less Scroll Horizontal Tank mount w/Desiccant Dryers
1602 A72M-DTH-6HS-D 300x225
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*

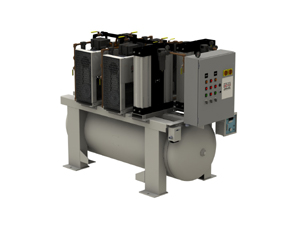

1602 Duplex Oil-less Scroll Horizontal Tank mount w/Desiccant Dryers 1602 A72M-DTH-6HS-D 300x225 10.0 29.60 29.60 240 A72M-DTH-6HE-D

Duplex Oil-less Scroll Horizontal Tank mount w/Desiccant Dryers
1603 A72M-DTJ-6HS-D 300x225
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*

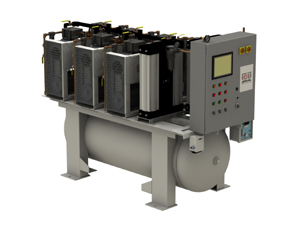

1603 Duplex Oil-less Scroll Horizontal Tank mount w/Desiccant Dryers 1603 A72M-DTJ-6HS-D 300x225 15.0 44.40 44.40 240 A72M-DTJ-6HE-D

Triplex Oil-less Scroll Horizontal Tank mount w/ Desiccant Dryers

* System capacities are shown with reserve compressor as redundant standby to comply with NFPA 99.


Triplex Oil-less Scroll Horizontal Tank mount w/Desiccant Dryers
1604 A72M-TTE-4HS-D 300x225
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*

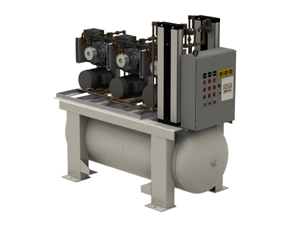

1604 Triplex Oil-less Scroll Horizontal Tank mount w/Desiccant Dryers 1604 A72M-TTE-4HS-D 300x225 3.0 9.70 19.40 240 A72M-TTD-6HE-D
5.0 14.80 29.60 240 A72M-TTE-6HE-D

Triplex Oil-less Scroll Horizontal Tank mount w/ Desiccant Dryers
1605 A72M-TTH-6HS-D 300x225
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*
1605 Triplex Oil-less Scroll Horizontal Tank mount w/ Desiccant Dryers 1605 A72M-TTH-6HS-D 300x225 10 29.60 53.60 240 A72M-TTH-6HE-D

Duplex Oil-less Scroll Stack Mounted with Desiccant Dryers

* System capacities are shown with reserve compressor as redundant standby to comply with NFPA 99.

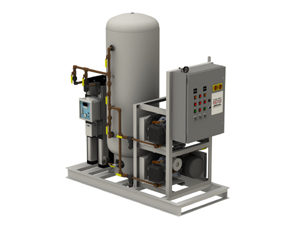

Duplex Oil-less Scroll Stack Mounted with Desiccant Dryers
1606 A72M-DSE-4VS-D 300x225
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*
1606 Duplex Oil-less Scroll Stack Mounted with Desiccant Dryers 1606 A72M-DSE-4VS-D 300x225 2.0 6.60 6.60 80 A72M-DSC-3VE-D
2.0 6.60 6.60 120 A72M-DSC-4VE-D
3.0 9.70 9.70 80 A72M-DSD-3VE-D
3.0 9.70 9.70 120 A72M-DSD-4VE-D
5.0 14.80 14.80 80 A72M-DSE-3VE-D
5.0 14.80 14.80 120 A72M-DSE-4VE-D

Duplex Oil-less Scroll Stack Mount with Desiccant Dryers
1607 A72M-DTH-4HS-D 300x225
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*

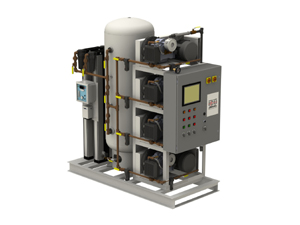

1607 Duplex Oil-less Scroll Stack Mount with Desiccant Dryers 1607 A72M-DTH-4HS-D 300x225 10.0 29.60 29.60 120 A72M-DTH-4HE-D

Triplex Oil-less Scroll Vertical Stack Mounted with Desiccant Dryers

* System capacities are shown with reserve compressor as redundant standby to comply with NFPA 99.

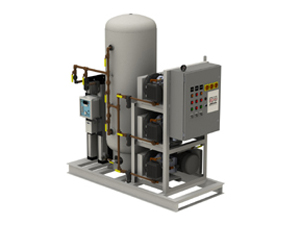

Triplex Oil-less Scroll Vertical Stack Mount with Desiccant Dryers
1608 A72M-TSE-4VS-D 300x225
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*
1608 Triplex Oil-less Scroll Vertical Stack Mount with Desiccant Dryers 1608 A72M-TSE-4VS-D 300x225 3.0 9.70 19.40 120 A72M-TSD-4VE-D
5.0 14.80 29.60 120 A72M-TSE-4VE-D

Quadplex Oil-less Scroll Vertical Stack Mounted with Desiccant Dryers

* System capacities are shown with reserve compressor as redundant standby to comply with NFPA 99.


Quadplex Oil-less Scroll Vertical Stack mount with Desiccant Dryers
1609 A72M-QSE-4VS-D 300x225
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*

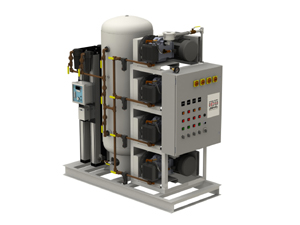

1609 Quadplex Oil-less Scroll Vertical Stack mount with Desiccant Dryers 1609 A72M-QSE-4VS-D 300x225 5.0 14.80 44.40 120 A72M-QSE-4VE-D
5.0 14.80 44.40 200 A72M-QSE-5VE-D

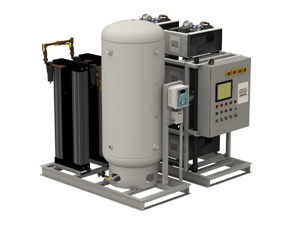

Quadplex Oil-less Scroll Vertical Stack mount with Desiccant Dryers
1610 A72M-QSH-5VS-D 300x225
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*
1610 Quadplex Oil-less Scroll Vertical Stack mount with Desiccant Dryers 1610 A72M-QSH-5VS-D 300x225 10.0 29.60 88.80 120 A72M-QSH-4VE-D
10.0 29.60 88.80 200 A72M-QSH-5VE-D

* System capacities are shown with reserve compressor as redundant standby to comply with NFPA 99.
